Description

Email Us For The Quotation:cntotemopto@gmail.com or info@cn-totem.com

Model One:Two Winch+One Led Tube

Model Two:Three Winch+Three Led Tube

Led Kinetic Tube(One Winch+One Led Tube)

Led Kinetic Tube(Two Winch+Two Led Tube)

Led Kinetic Tube(Three Winch+Three Led Tube)

The Winch Feature:

Power supply: AC100V-240V, 50-60 Hz

Power consumption:40W

Lifting height: 0-3m( 8m,10m,15m are optional)

Lifting speed: 1m/s

Safe Load:less 2.3kg

Screen:4 Digital tube display

Synchronization error:Less 6MM

Load-bearing cable diameter:Diameter 3.7MM

Working temperature: 5°c – 45°c

DMX channels: 6 Channels

Control:DMX,Madrix

Power Connect: Powercon in&out

DMX XLR: 3 PIN XLR in&out

Safety security:Physical braking, electronic protection

Protection rating: IP20

Net Weight:4kg

Size:168x128x292mm

LED Tube Feature :

Led tube size: 100cm/150cm/200cm

Weight: 0.75~1.5kg

Color:RGB

Viewing angle: 360°

Working temperature (t):-10°c-45°c

Protection rating: IP20

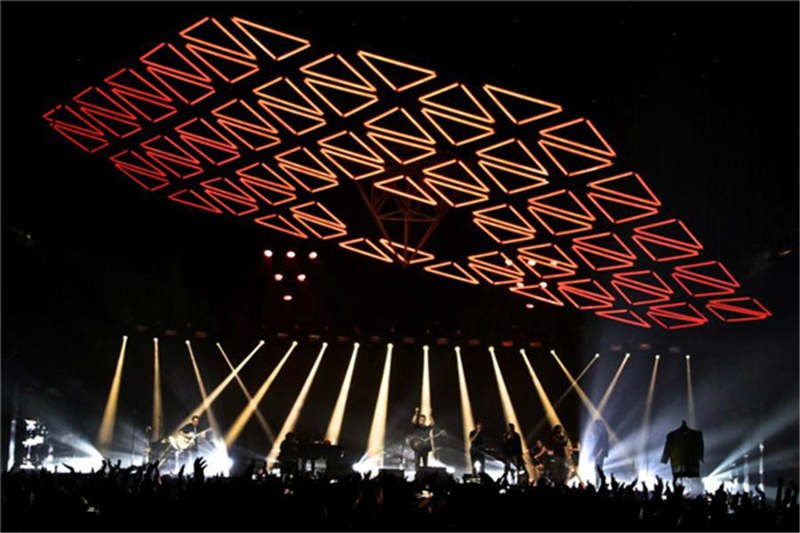

Product Effect:
