NEW 400w beam&spot&wash 3in1 led moving head light with cmy+cto

Parameter:

Input voltage: AC110V-240V/50-60HZ

Power consumption: 430W

Light source life: 50000 hours

Light source specification: Imported new LED Module engine 400W

Color temperature: 8000K CRI>95

Dimming system: 0-100% linear adjustment

Focusing system: linear adjustment from 4 meters to 50 meters

Frost: 1 independent frost filter, soft and natural light spot

Spot zoom angle: 4-35 degrees

Wash angle:10-50 degrees

High-speed strobe: 0-30 times/sec.

Adjustable speed strobe effect. Strobe macro function.

CONTROL AND PROGRAMMING

Channel mode: 23 /21 channels

Display mode: LCD display, key + touch dual operation mode

Control signal: International standard DMX512.

With RDM function, online software upgrade is available, dial address code

Color: 8 colors + open.

Color half-color function

Color mixing system: linear CMY+CTO color mixing system

Fixed gobos: 12 fixed patterns + open

Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse

Prism system: standard single 6-facet prism and 8 prism, each prism can be independently forward and reverse

Macro function: console reset function, self-propelled mode, master-slave mode

Horizontal scan: 540 degrees (16bit precision scan) electronic error correction

Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction

Cooling method: Adopt axial fan to enhance cooling

Safety device: with electronic temperature control overheating
protection,electronic temperature control automatic power-off protection when the overheating system fails

Appearance material: high temperature resistant plastic

Working environment: -20 degrees – 40 degrees

Protection level: IP20

WEIGHT&DIMENSION

Product net weight: 26KG

Product size: 38*27*65CM (L*W*H)

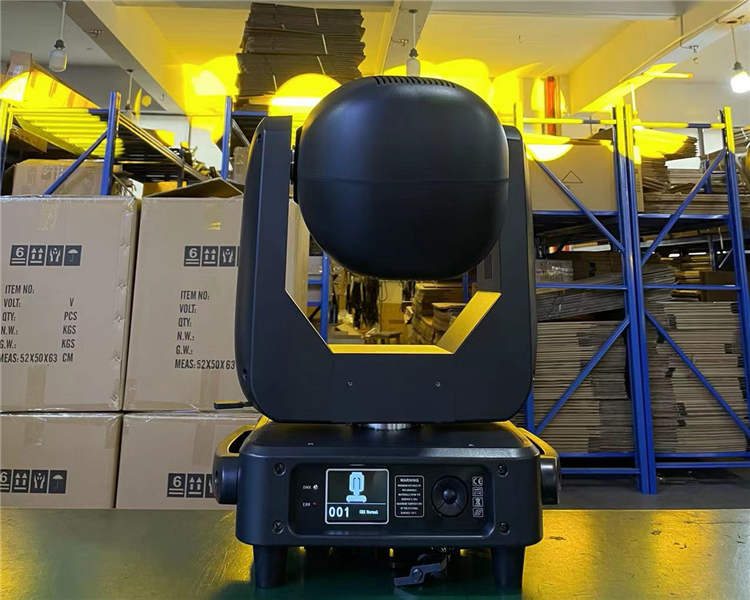

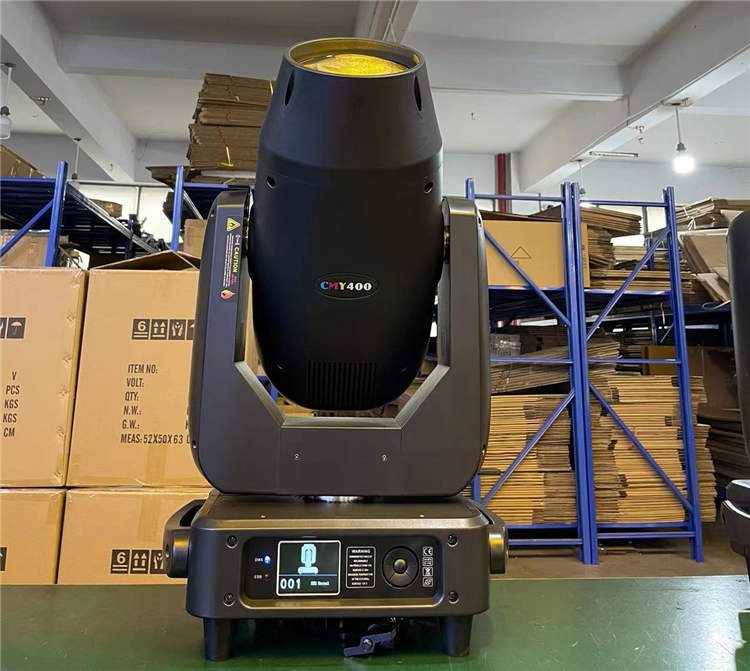

More Photos:
